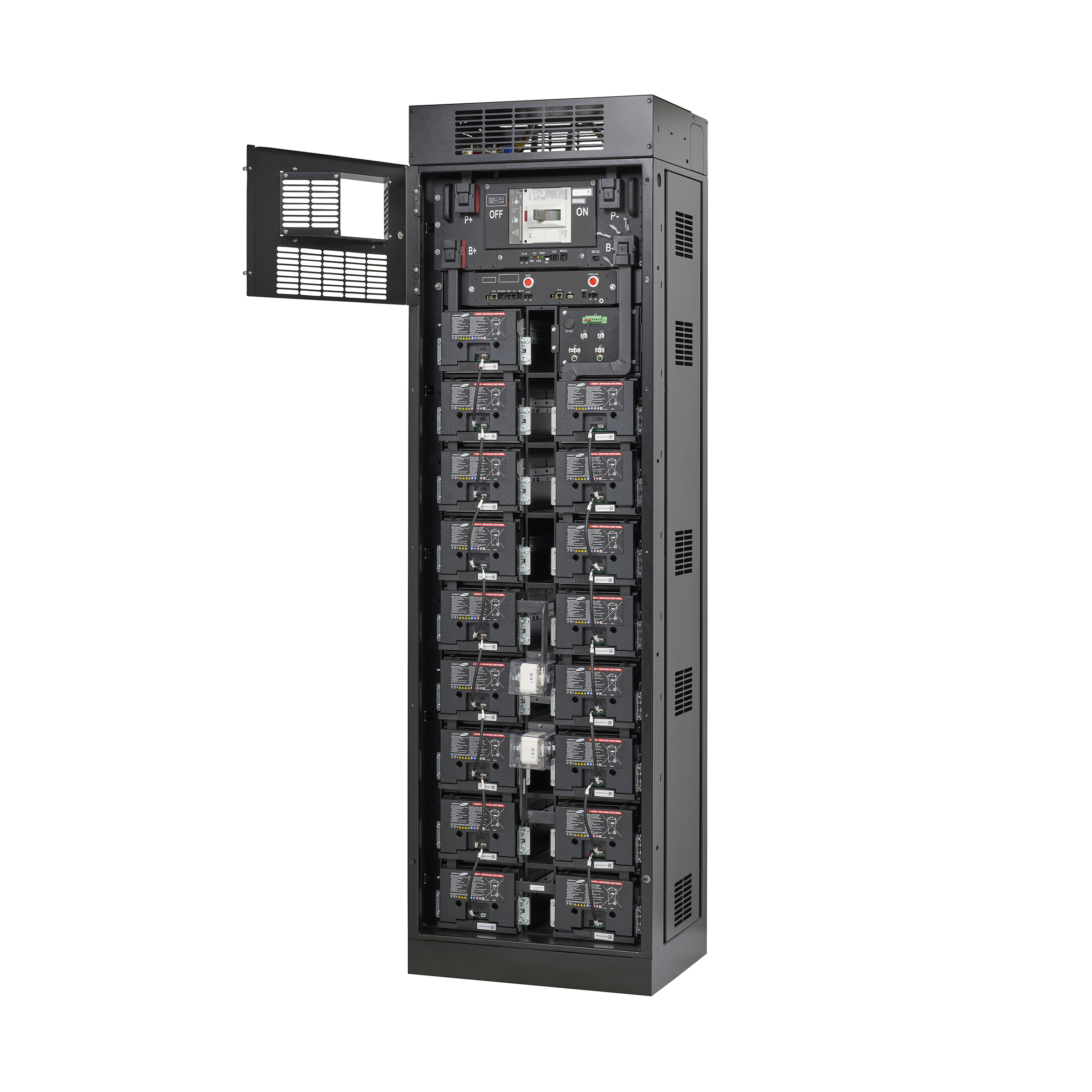

Eaton’s lithium-ion battery systems provide a compact, reliable and flexible solution that ensures 24/7 system uptime while delivering significant total-cost-of-ownership (TCO) savings. Capable of providing megawatts of power in a small footprint, this battery solution is comprised of lightweight battery strings designed to seamlessly connect to an Eaton 9395 family UPS or 93PM UPS.
Lithium-ion chemistry offers exceptional advantages in UPS applications due to it's lightweight design and high energy density, allowing more energy storage in compact spaces. These batteries last longer, enduring more charge cycles with fewer replacements and reducing long-term costs. Lithium-ion batteries also charge quickly, exhibit higher efficiency and have lower cooling needs due to a wider temperature tolerance. Additionally, the integrated advanced battery management system (BMS) monitors and regulates system performance and can operate on either internal DC logic power or AC logic power supplied by the customer.
Litihum-ion UPS battery technology offers numerous advantages including a lifespan of up to 15 years. Learn more about battery safety, operational functionality, code compliance and more in this comprehensive FAQ.
With a higher power capacity, lithium-ion batteries enable three-phase UPS systems to deliver robust performance within a confined physical footprint, and their extended lifespan reduces complexities and cost savings in large installations.
A wide range of runtimes from 3 minutes to an hour+ are available. Contact us for backup times and configurations.
| 128S model | 136S model | |
| Nominal voltage | 486 V | 517 V |
| Minium voltage (DC under voltage trip point - DCUV) | 384 V | 408 V |
| Float voltage | 538 V | 571 V |
| Capacity | 67 Ah, 32.6 kWh | 67 Ah, 34.6 kWh |
| Dimensions (H x W x D)** | 87.10 in x 25.60 in x 20.60 in (2213 mm x 650 mm x 524 mm) |
|
| Weight | 1,118 lb (507 kg) | 1,160 lb (526 kg) |
| DC cable terminations | 2-hole lugs (top entry only) | |
| Continuous charge current | 22 A | |
| Operating temperature range | 18 °C to 28 °C (64 °F to 82 °F)*** | |
| Safety certifications | UL 1973, UL 9540 A successfully tested | |
| Shipping certifications | UN3480, Class 9, UN 38.3 UN3480, Class 9, UN 38.3 | |
* Specifications subject to change without notice.
** Dimensions include the conduit box on the base structure.
*** To maintain 12-year performance guarentee.
Note: Seismic brackets are an optional accessory.
